Shandong Shengyue Technology Development Co.,Ltd is one of the most professional foton 2.8-liter inline-four high-pressure common-rail turbocharged diesel engine 4j28tc3 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

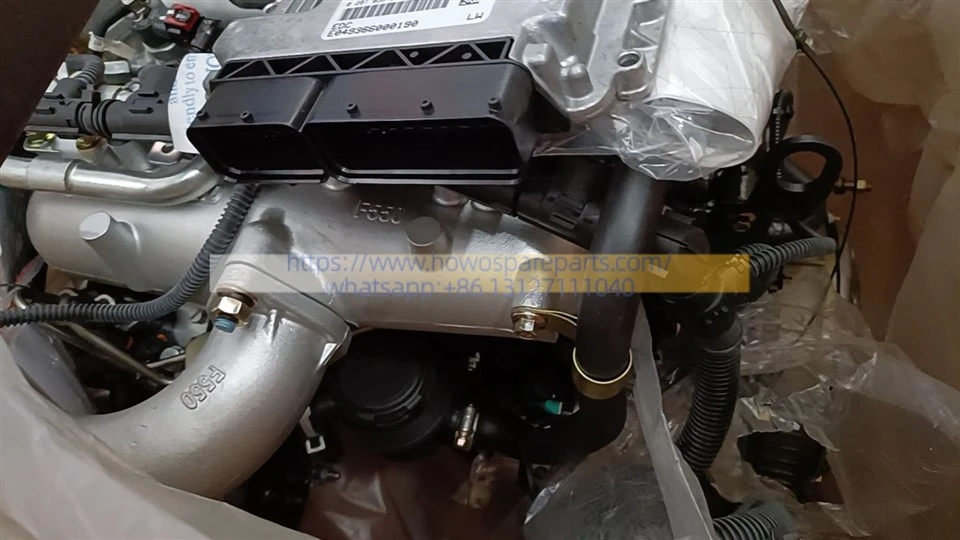

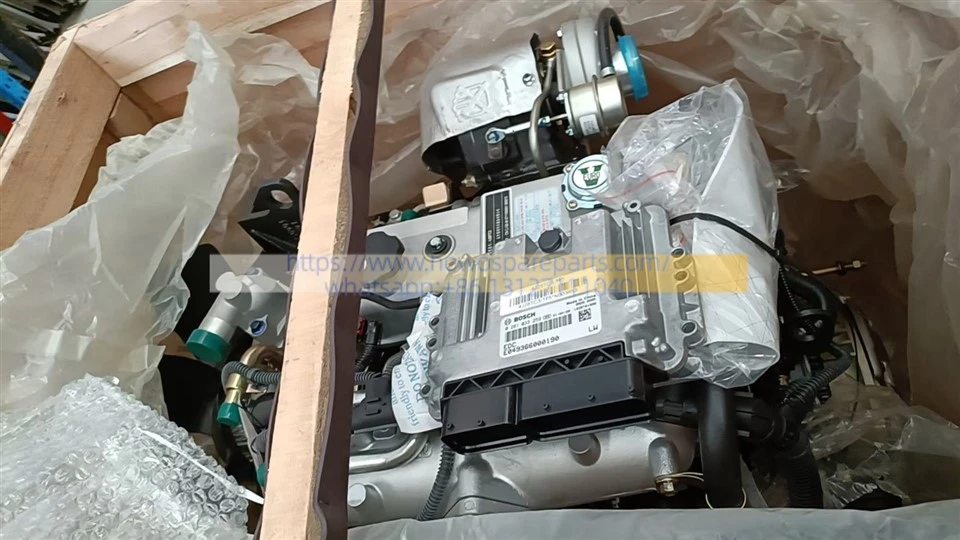

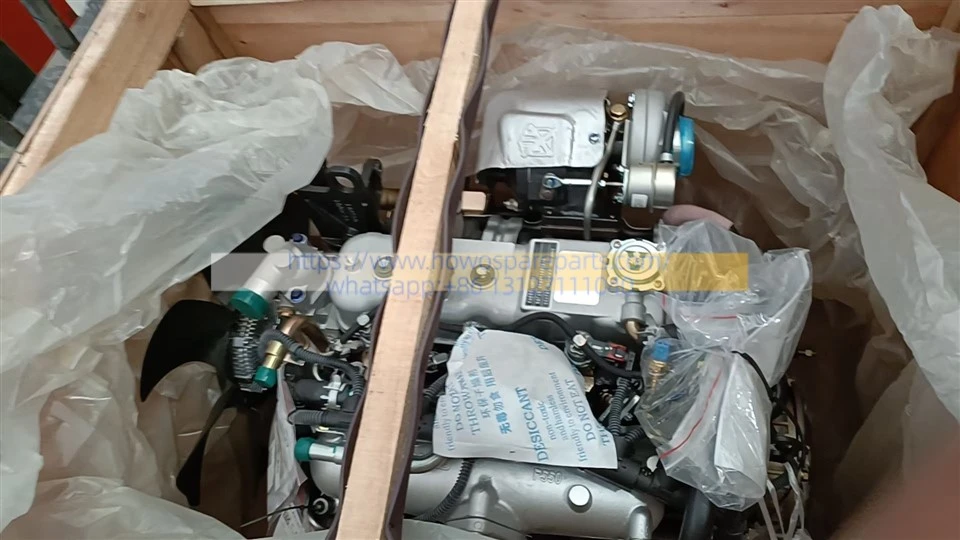

Foton 2.8-liter inline-four high-pressure common-rail turbocharged diesel engine 4J28TC3
Basic Specifications & Core Structural Parameters
| Category | Technical Item | Official Standard Data | Remarks / Notes |
|---|---|---|---|
| Basic Info | Cylinder Arrangement | Inline 4-Cylinder (Inline-4 / I4) | The most classic 4-cylinder layout for light-duty commercial trucks. |
| Aspiration Type | Turbocharged & Intercooled | Increases air intake volume to maximize combustion efficiency. | |
| Geometry | Displacement | 2.771 Liters (Commonly 2.8 L) | Golden displacement, perfectly balancing heavy loads and fuel economy. |
| Valvetrain | Camshaft & Valves | OHV (Overhead Valve) / 2 Valves per Cyl | Exceptionally simple and reliable structure; ultra-low maintenance costs. |
| Materials | Cylinder Head Material | Aluminum Alloy | Reduces overall engine weight and improves cylinder head heat dissipation. |
| Cylinder Block Material | High-Strength Cast Iron | Outstanding load-bearing capacity; highly durable and abuse-resistant. |
Power Output & Performance Efficiency
| Category | Technical Item | Official Standard Data | Remarks / Notes |
|---|---|---|---|
| Power Output | Rated Max Power | 81 kW | Equivalent to approximately 110 metric horsepower (ps). |
| Speed at Max Power | 3600 RPM | Low-RPM diesel engine tuning, emphasizing sustained mid-to-low speed output. | |
| Torque Output | Max Torque | 280 N·m ~ 360 N·m | Varies depending on ECU tuning configurations for light trucks, pickups, or vans. |
| Speed at Max Torque | 2000 - 2400 RPM | Ensures effortless launch and acceleration when fully loaded or climbing mud/slopes. | |
| Emissions | Emission Compliance | National V (Euro V) | Complies with standard exhaust and smoke emission tests for operating light trucks. |
Fuel Control & Electrical Systems
| Category | Technical Item | Official Standard Data | Remarks / Notes |
|---|---|---|---|
| Fuel System | Fuel Injection System | CRDI (Common Rail Direct Injection) | Typically equipped with Bosch electronically controlled common-rail system for precise fueling. |
| Post-Treatment System | DOC + DPF + SCR | Works with vehicle DEF (Diesel Exhaust Fluid/Urea) to reduce soot particulates and NOx. | |
| Electricals | Electrical System Voltage | 12 V or 24 V | Vehicle-dependent (Typically 12V for pickups, 24V for light-duty freight trucks). |
| Starter Motor Power | Approx. 2.8 kW ~ 3.2 kW | High-power starter ensures quick ignition in freezing winter conditions. |
Maintenance & Consumable Specifications
| Category | Technical Item | Common Recommendations | Remarks / Notes |
|---|---|---|---|

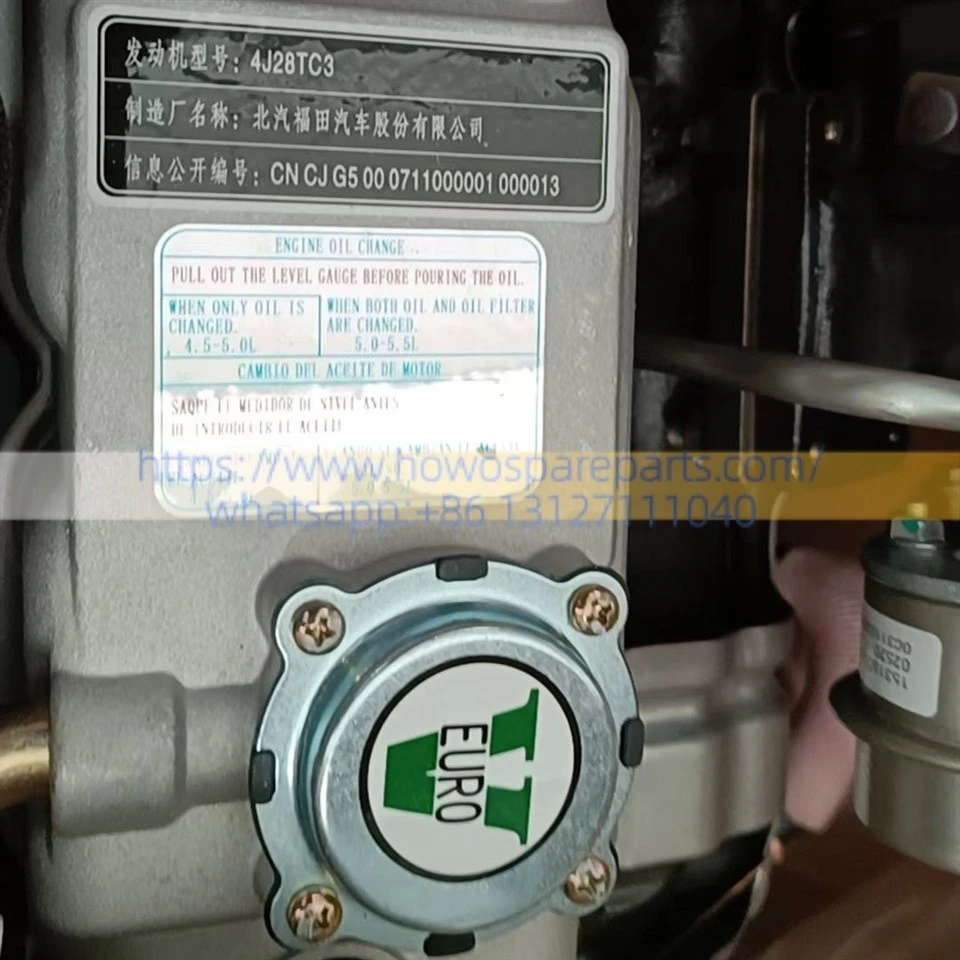

| Engine Oil | Lubricant Capacity | Approx. 5.5 - 6.0 Liters (L) | Buying one 4L jug plus two 1L bottles is usually sufficient for a full oil change. |
| Recommended Oil Grade | API CI-4 or CJ-4 (15W-40 / 10W-30) | Vehicles equipped with a DPF must use low-ash oil to prevent DPF clogging. | |
| Filters | Oil Filter Type | Spin-on Heavy Duty Oil Filter | Filters out metallic wear fragments generated under high common-rail pressures. |
| Fuel Filters (Primary/Secondary) | Dual-stage with Water Separator | Fuel systems are highly sensitive to water; drain the water separator sediment bowl regularly. | |
| Drivetrain | Matching Gearbox | Commonly paired with Wanyang 5/6-Speed Manual | Positive gear engagement with highly efficient power transfer. |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
