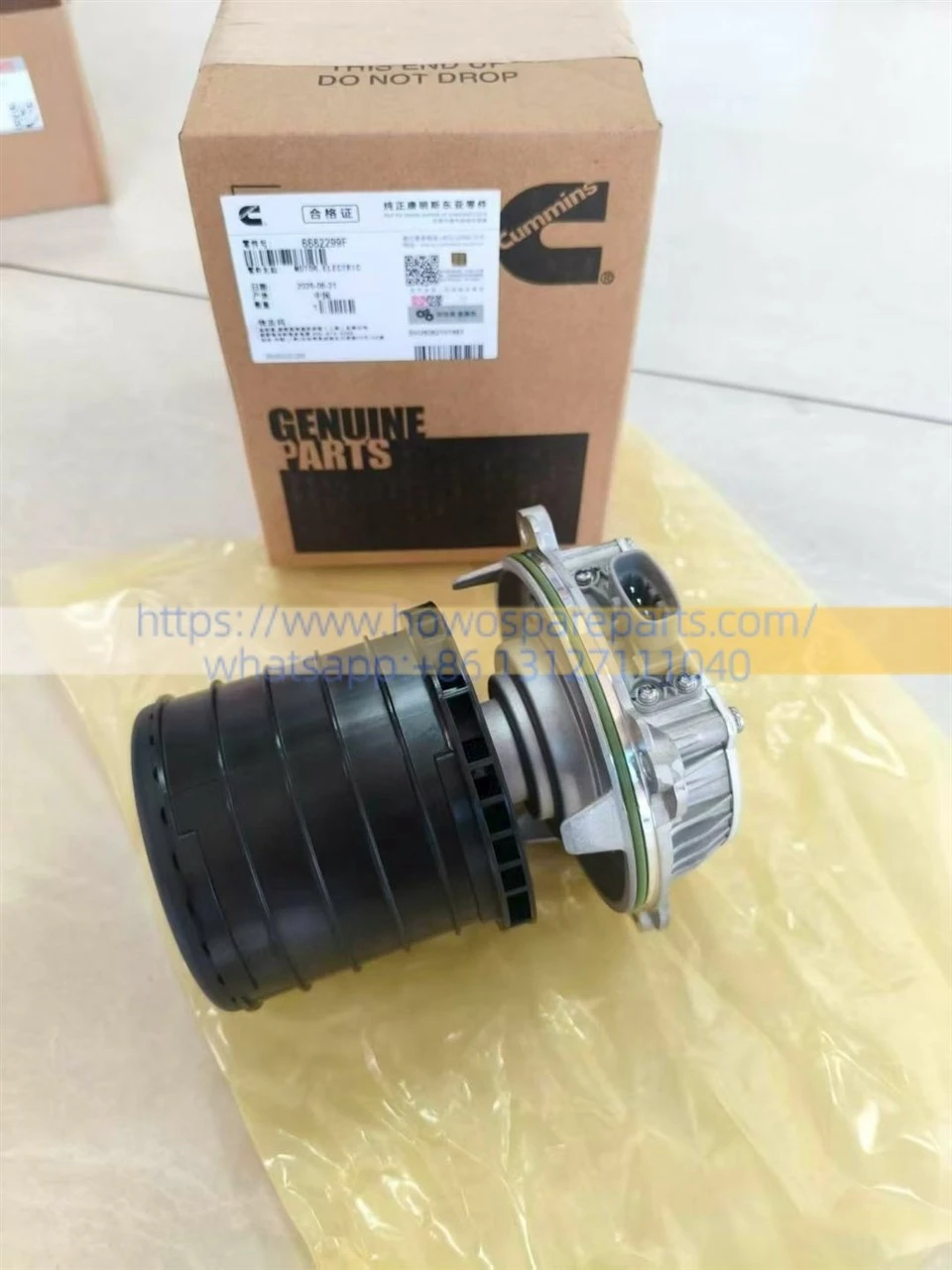

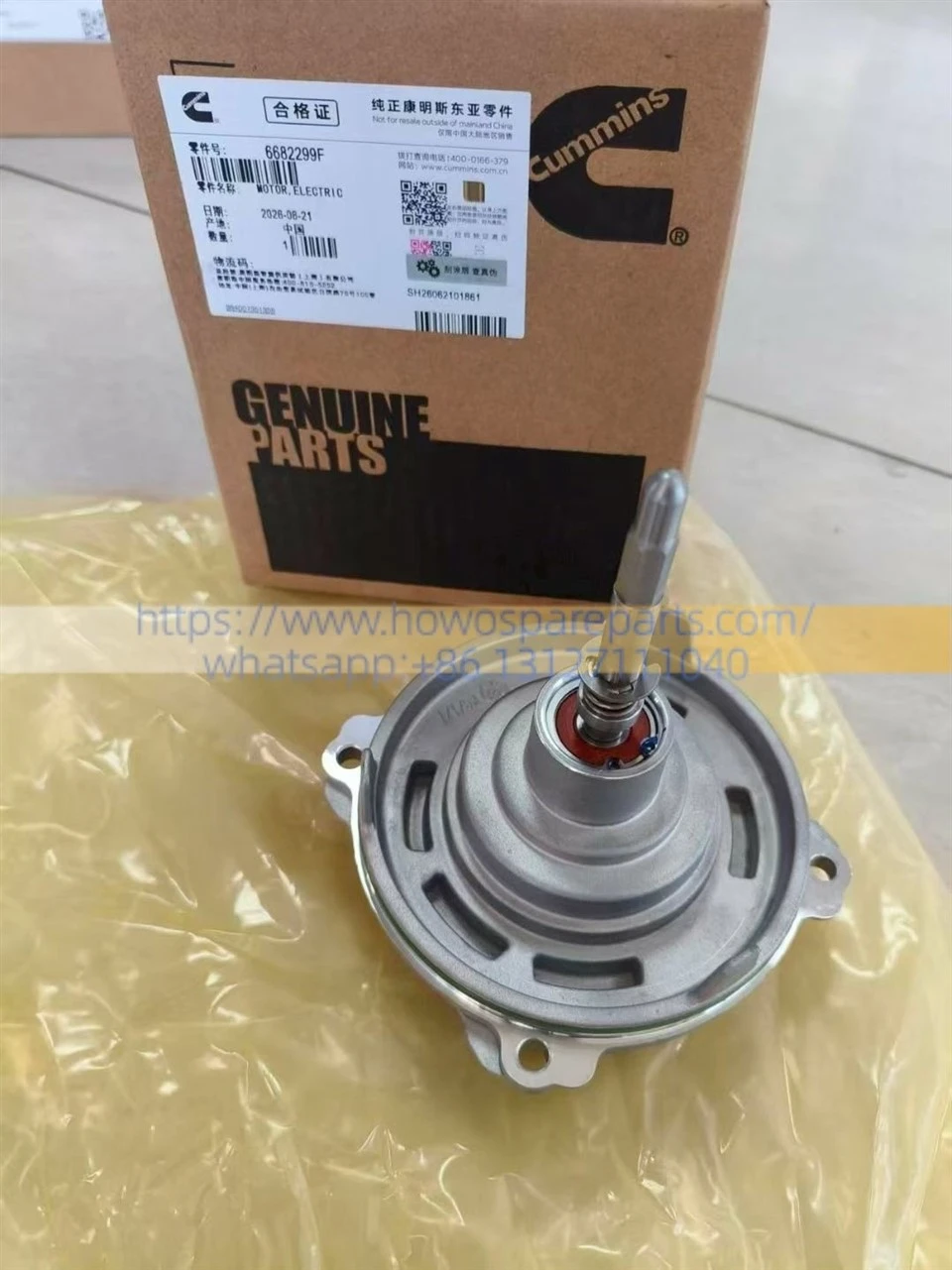

Cummins 15N Natural Gas Engine Crankcase Ventilation Motor / Oil-Gas Separator Motor 6682299F
It serves as the power source for the engine's positive crankcase ventilation (PCV) system (an active oil-air separator). The motor drives the separator to rotate at high speed, using centrifugal force to efficiently separate oil particles from crankcase blow-by gases-returning the oil to the sump-while directing the gases into the intake system to be burned.
Troubleshooting recommendation: When replacing the motor, always check the connector for oil seepage (often referred to as "capillary oil leakage"). If a seal failure in the old motor has allowed oil to seep along the wiring harness into the connector, you must thoroughly clean the harness connector with electronic cleaner before connecting the new motor; otherwise, the new motor's internal drive board may be damaged.
BOM (Bill of Materials) for Cummins 6682299F Crankshaft Ventilation Motor & OCV System Overhaul
| Part Category | Replacement Recommendation | Reference Part No. | Part Name (English) | Qty | Description & Remarks |
|---|---|---|---|---|---|
| 1. Core Control Units | Core Replacement | 6682299F / 6682299 | Crankshaft Ventilation Motor (Oil-Air Separator Motor) | 1 pc | The core part to be replaced. Driven by the ECU via PWM signal to rotate the internal centrifugal rotor. |

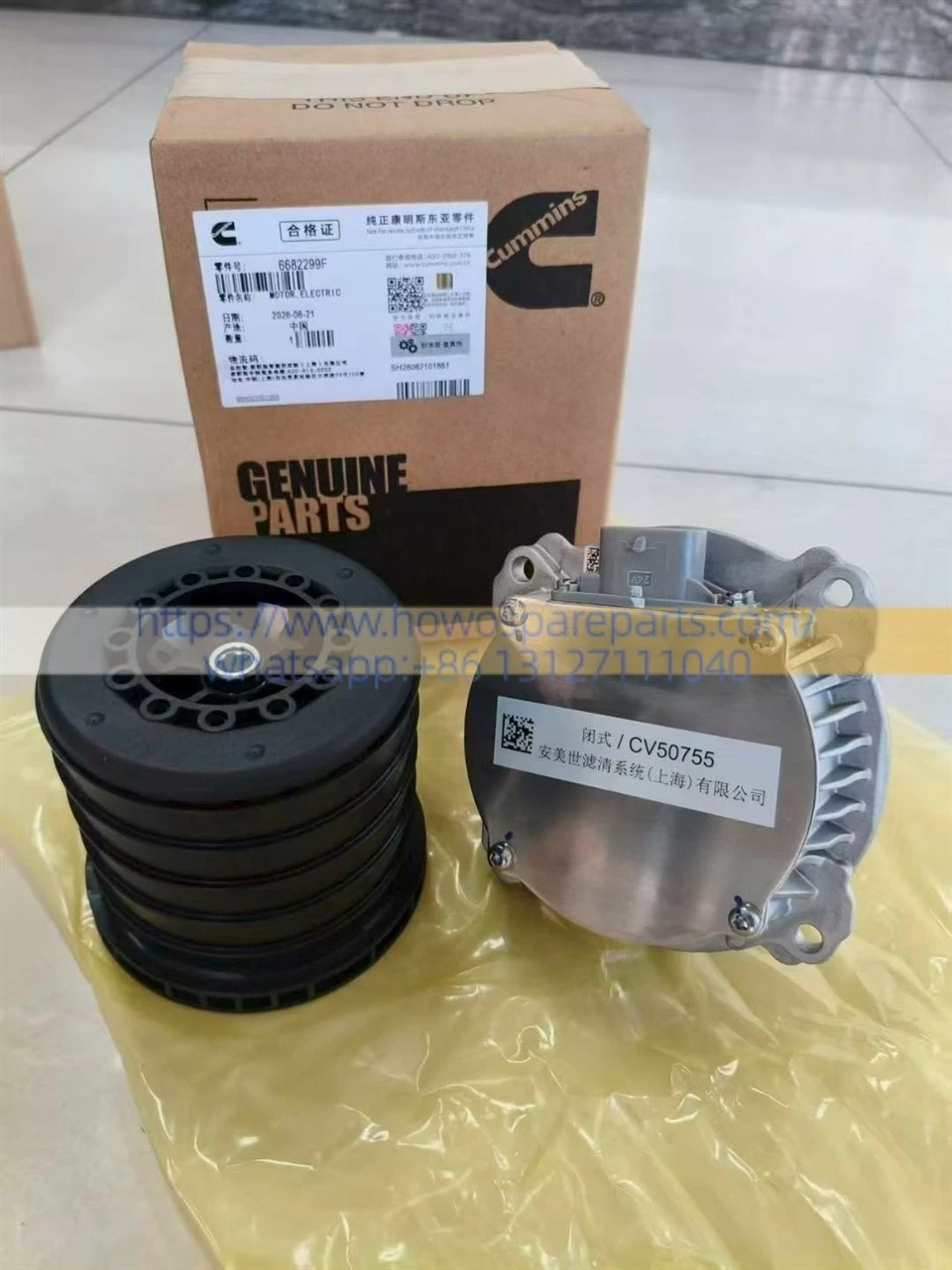

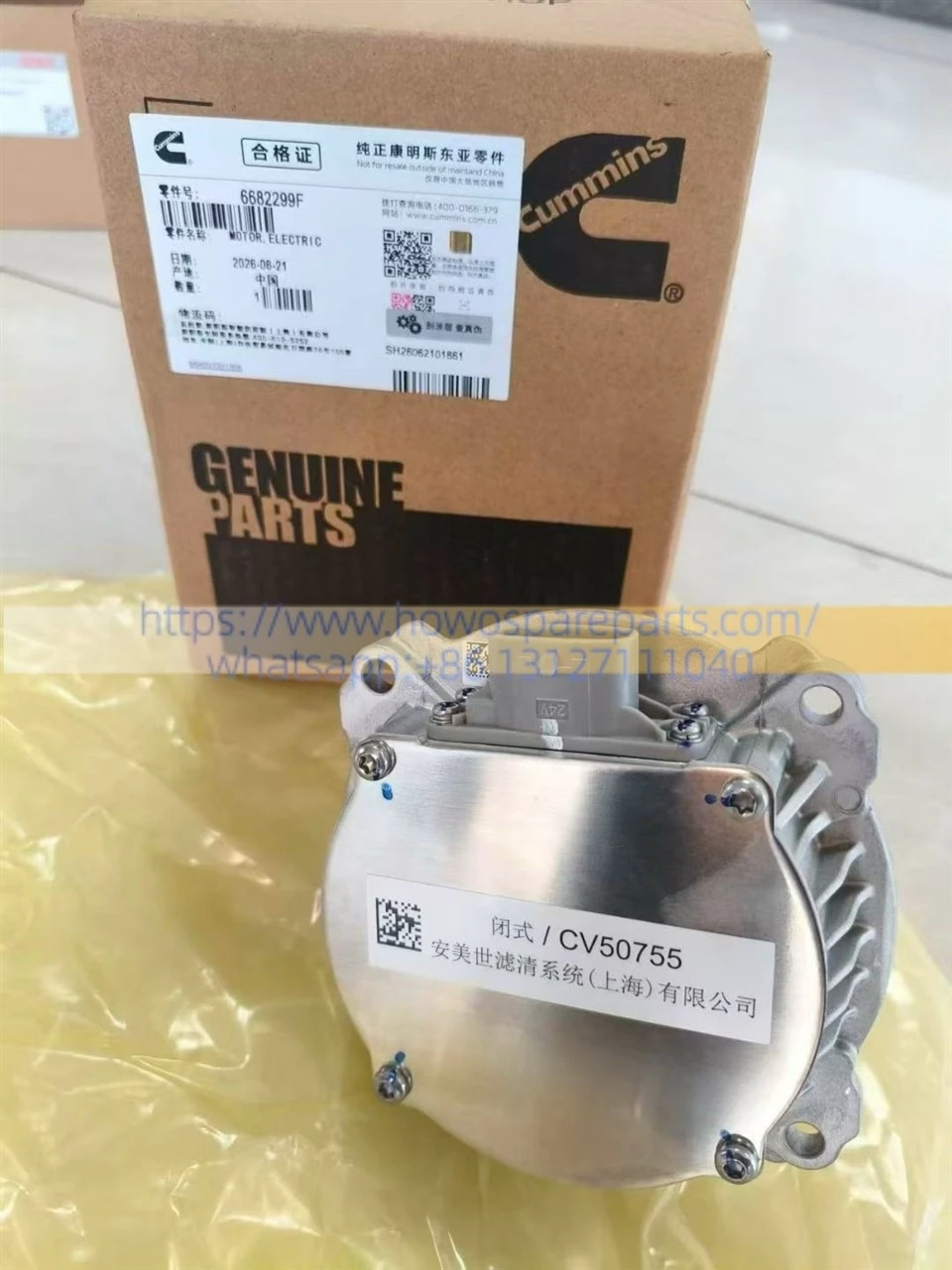

| Optional (Upon Wear) | CV50755 / 5661364 | Electrically Driven OCV Assembly (with Housing) | 1 set | Replace the entire assembly if the old base/housing is cracked, clogged, or heavily carbon-fouled. | |
| 2. Monitoring Sensors | Recommended | 4358810 / 2872424 | Crankshaft Pressure Sensor | 1 pc | Key sensor for system pressure monitoring. Replace if it drifts or falsely triggers the "High Crankshaft Pressure" fault code. |
| 3. Gaskets & Seals | 100% Mandatory | 5579309 / 5532506 | OCV Housing Rectangular Gasket | 1 pc | One-time use consumable. Prevents oil and blow-by gas leaks between the cylinder head/intake side and the separator base. |
| (Main Cause of Oil Leaks) | 100% Mandatory | O-Ring (Part Series) | FKM O-Rings (Interface Seals) | As req. | Includes O-rings for the inlet/epicyclic oil return ports and sensor mounting holes. Prone to hardening and cracking. |
| 4. Hoses & Return Lines | Recommended | 5579311 / 5579312 | Blow-by Inlet Tube / Oil Return Tube | 1 pc each | Prone to aging, becoming brittle, and cracking under prolonged high engine temperatures. |
| Recommended | 4934279 (Ref. No.) | Oil Return Check Valve | 1 pc | Prevents engine oil from being sucked back from the oil pan into the separator. Replace if seized. | |
| 5. Electrical Workshop Supplies | Optional (As Needed) | Contact Cleaner | Electronic Contact Cleaner | 1 can | Essential workshop chemical. Used to thoroughly clean oil residue out of the harness connector if capillary leakage occurred. |
DETAILS
| DESCRIPTION | Crankcase Ventilation Motor / Oil-Gas Separator Motor | PART NUMBER | 6682299F |
| WEIGHT | 2kg | VOLUME | 14.5 cm × 11.2 cm × 9.8 cm |
| TRUCK MOLDE | CUMMINA | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | ENGINE |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
