Shandong Shengyue Technology Development Co.,Ltd is one of the most professional kubota kx155-5 / kx175-5 air filter element rek11-42240 manufacturers and suppliers in China. Please feel free to buy high quality genuine auto parts at competitive price from our factory.

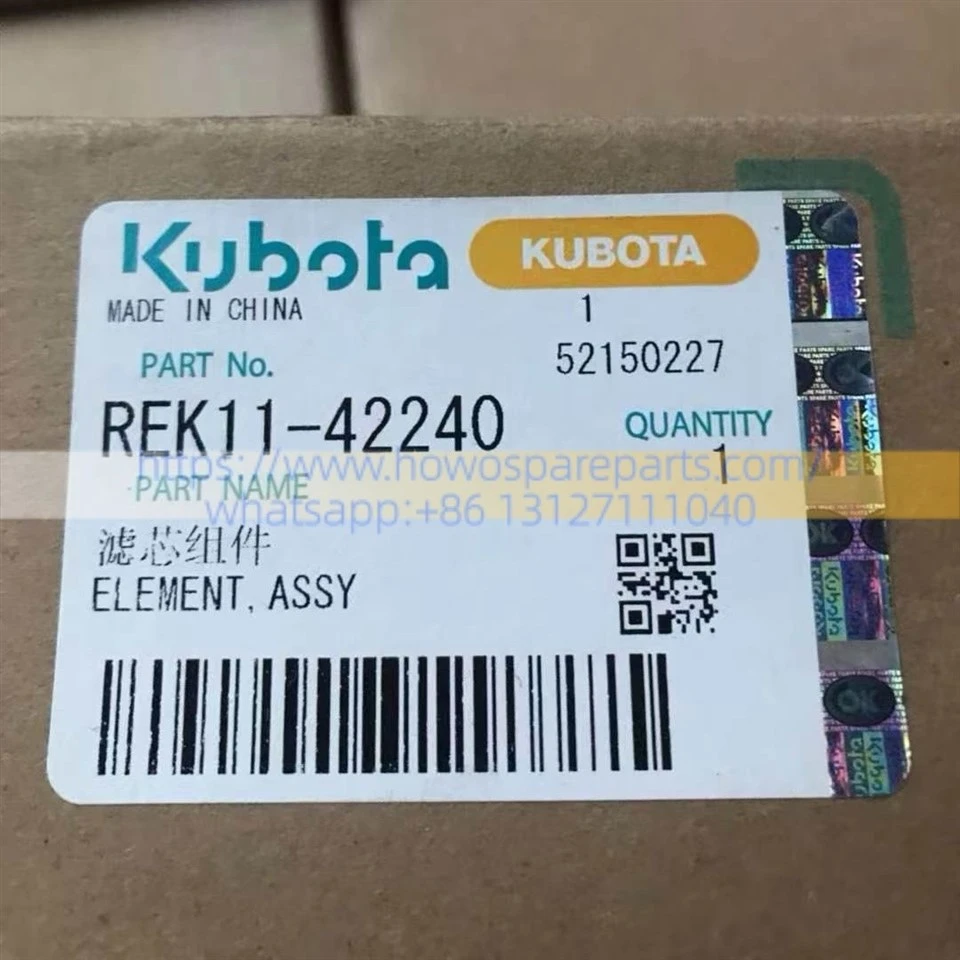

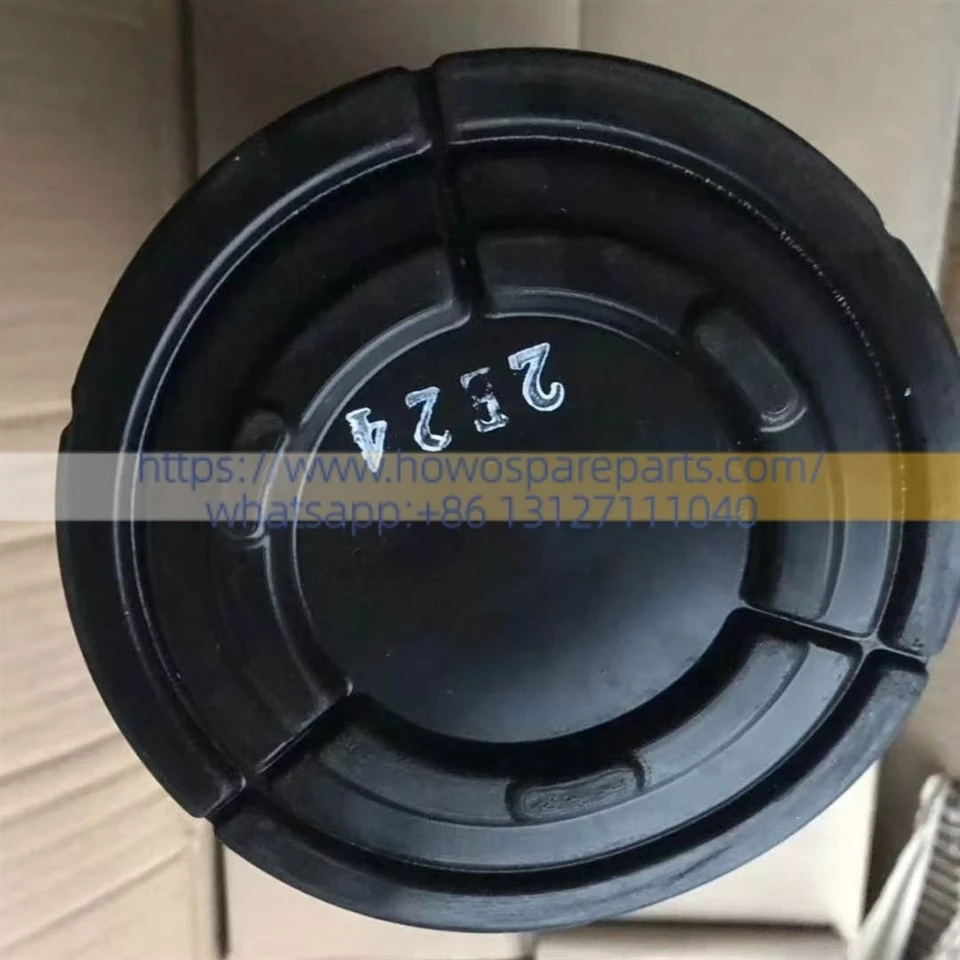

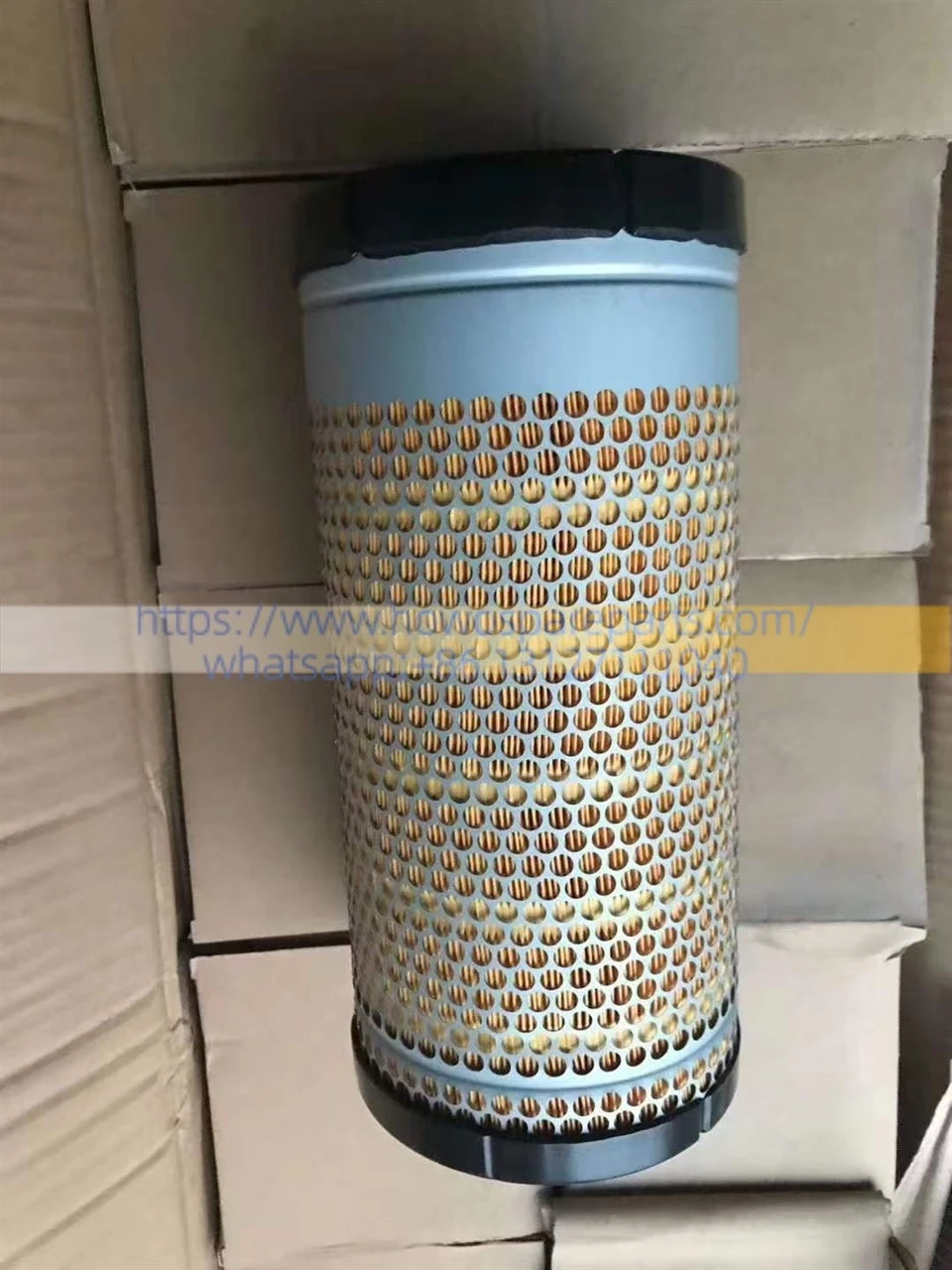

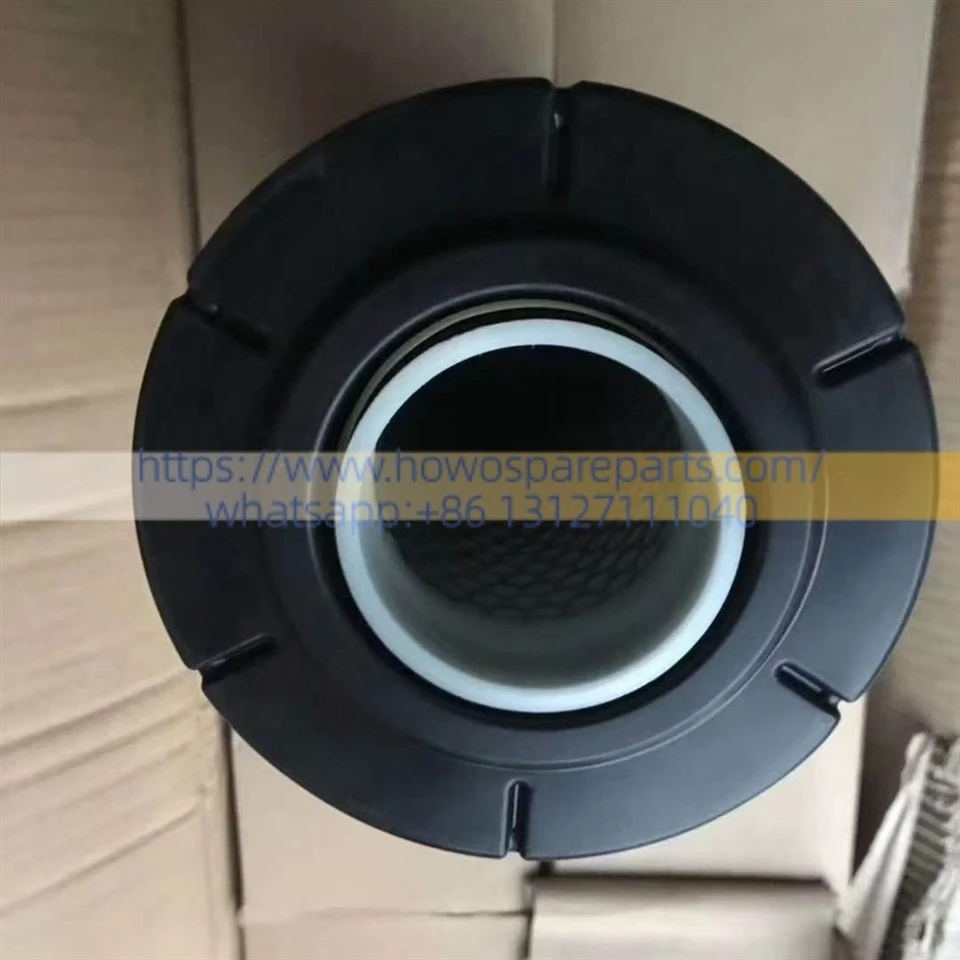

Kubota KX155-5 / KX175-5 Air Filter Element REK11-42240
Maintenance and Replacement Intervals
1. Routine Cleaning (Air-Blasting): It is recommended to inspect the filter every 50–100 operating hours. You may use dry compressed air (at a pressure below 0.2–0.3 MPa) to blow through the filter element from the inside out. (Never blow from the outside in, as this will force dust deep into the filter media.)
2. Mandatory Replacement:
• Under normal operating conditions, the filter should be replaced every 250–500 operating hours, typically in conjunction with an engine oil and oil filter change.
• If the air filter restriction indicator on the dashboard illuminates, or if you observe black exhaust smoke or a loss of engine power, the filter must be replaced immediately; it should not be cleaned or reused.
Bill of Materials (BOM) for Excavator 500-Hour Scheduled Maintenance
| Category | No. | Part Name | Cross-Reference / OES PN | Qty | Service Interval | Remarks & Compatibility |
|---|---|---|---|---|---|---|
| Air Intake System | 1 | Air Filter (Outer) | REK11-42240 / YD00001541 | 1 pc | 250-500h | Primary filtration core. Replace earlier in high-dust conditions. |
| 2 | Air Filter (Inner / Safety) | REK11-42240 Inner / 119-72702001 | 1 pc | 500h | Engine protection. DO NOT blow clean. Replace with outer element. | |
| Filtration System | 3 | Engine Oil Filter | 4650205 / 15221-43170 / W163 | 1 pc | 250-500h | Must be replaced concurrently with every engine oil change. |
| 4 | Fuel Pre-Filter (Water Separator) | 4676385 / REK56-51580 / TF-2780 | 1 pc | 500h | Filters large particles/water. Drain water frequently in humid areas. | |
| 5 | Fuel Fine Filter | 57057-25610 / 4676385 | 1 pc | 500h | High-precision filtration to protect high-pressure pumps and injectors. | |
| 6 | Hydraulic Return Filter | RD431-62120 / 400504-00225 | 1 pc | 500h | Captures metal debris generated by hydraulic system friction. | |
| 7 | Pilot Filter / Suction Strainer | 4511554116 / Optional Components | 1 pc | 500h | Model-dependent. Ensures smooth pilot joystick operation. |
DETAILS
| DESCRIPTION | Air Filter Element | PART NUMBER | REK11-42240 |
| WEIGHT | 1 kg | VOLUME | 150 mm × 150 mm × 320 mm |
| TRUCK MOLDE | Kubota | QUALITY | Copy,High Copy, OEM,Original |
| MOQ | 1 | WARRANTY | 1 year |
| PAYMENT | TT/WESTEN UNION | SHIPMENT | by air/sea/railway |
| BRAND | SINOSACHS | PLACE OF ORIGIN | JINAN CITY,CHINA |
| STOCK | IN STOCK | APPLICABLE SITE | |
| PACKAGE | Carton/Woodenbox | PORT OF LANDING | Qingdao Port,China |
Hot Tags: kubota kx155-5 / kx175-5 air filter element rek11-42240, manufacturers, suppliers, factory, parts, genuine, original
